Roofing Sheet Machine Manufacturers in Coimbatore

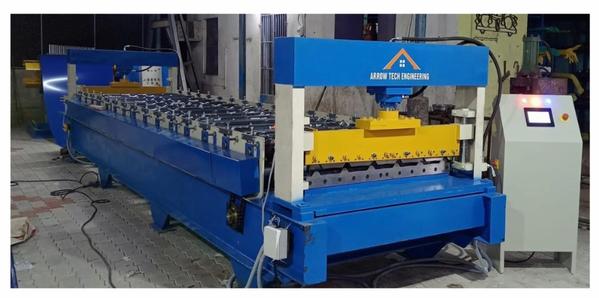

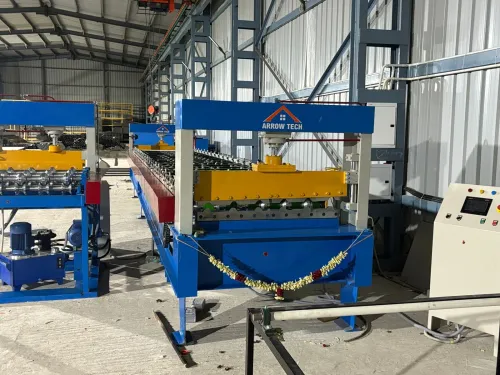

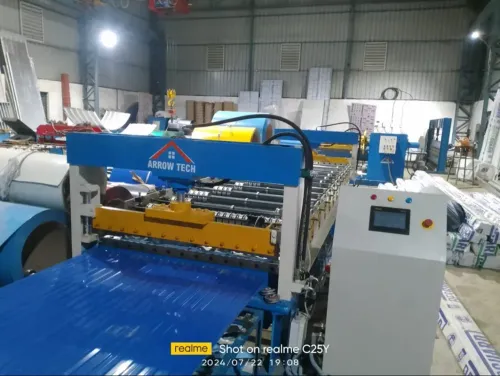

A metal roofing sheet making machine transforms metal coils into roofing sheets using roll-forming technology. It shapes and profiles the metal into various designs and thicknesses with precision and efficiency. Ideal for construction and industrial applications, the machine ensures high-quality, durable roofing sheets while accommodating different styles and sizes for diverse roofing needs. Specifications: 1) Machine Size - 6 Feet x 6 Feet x 35 Feet 2) Material to be processed - PPGL / PPGI / BGL / GC 3) Handling sheet Width - 1220 mm 4) Sheet Thickness Range - Min 0.25 mm - Max 0.6 mm 5) Number of Forming Stages - 21 stations 6) Sheet cutting System involved - Hydraulic powered hydraulic system 7) Number of cutting point - 2 cutting points involved in forming machine 8) Number of Rollers involving - 295 Rollers involving for perfect forming 9) Mechanical Drive System - 7.5 HP powered BONFIGLIOLI gearbox 10) Driving Chain - Diamond Brand 11) hydraulic Power Source - 3 HP powered Yuken Pump System 12) Sheet cutter Made-up of HCHCR - D3 - Heat Treated with 60 HRC 13) Electrical Drive System - DELTA Drive with PLC combined 14) Machine production Speed - 60 Feet per Min - 5 TON per 4 HRS 15) Panel Interface - Touch Display - user friendly

A Roofing sheet profile forming machine shapes metal coils into specific roofing profiles using roll-forming technology. It features adjustable rollers to create various designs and thicknesses with precision. Ideal for producing durable, high-quality roofing sheets, this machine ensures consistent profile formation, enhancing both functionality and aesthetic appeal in construction and roofing applications. Specifications: 1) Machine Size - 11 Feet x 3 Feet x 8 Feet 2) Model - Semi-Automatic / Manual – 10 Feet 3) Electrical Load - 3 HP 4) Hydraulic System - 3 HP motor with Dowdy pump System 5) Electrical Control System - Logical control 6) Max Width - Max 3050 mm 7) Machine Weight - Approx. 2 TON

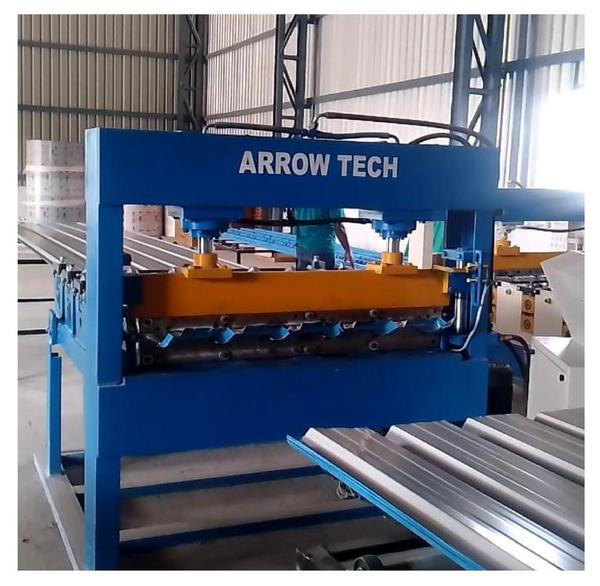

A roofing sheet liner profile forming machine shapes and profiles metal sheets into specific patterns for roofing applications. It uses roll-forming technology to create precise, consistent profiles from coils of metal, ensuring durability and fit. The machine features adjustable rollers and guides to accommodate various sheet sizes and profiles, making it ideal for producing high-quality roofing sheets and liners in construction and manufacturing. Specifications: 1) Machine Size - 3500 mm x 2500 mm x 2000 mm 2) Machine Type - Fully Automatic 3) No of Cylinder - 2 Hydraulic Cylinders ( 10 ton capacity ) 4) Hydraulic System - 3 HP motor with Dowdy pump 5) Control System - DELTA System panel 7) Feeding Roller - 4 Stages With Plated 60 microns 8) Roller Material - EN8 Hardened 9) Stackers - 2 Stacker - front & Back 10) Electrical Load - 8 HP 11) Drive Motor - 2 HP HAVALS 12) Power pack Motor - 3HP HAVALS 13) Crimping Die - OHNS TUNGSTEN Material

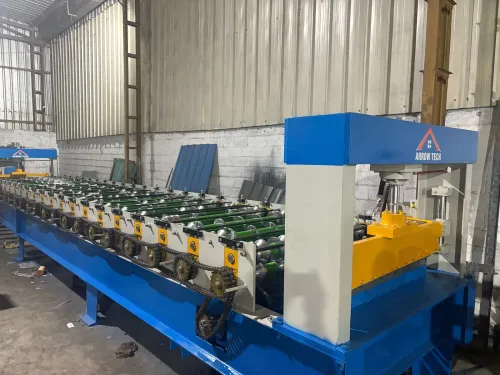

A Roofing sheet profile forming machine shapes metal coils into specific roofing profiles using roll-forming technology. It features adjustable rollers to create various designs and thicknesses with precision. Ideal for producing durable, high-quality roofing sheets, this machine ensures consistent profile formation, enhancing both functionality and aesthetic appeal in construction and roofing applications. Capacity - 20 m/min Max Sheet Width - 200 mm Material - Mild Steel Usage/Application - Industrial Automation Grade - Automatic Job Thickness - 0.5 mm

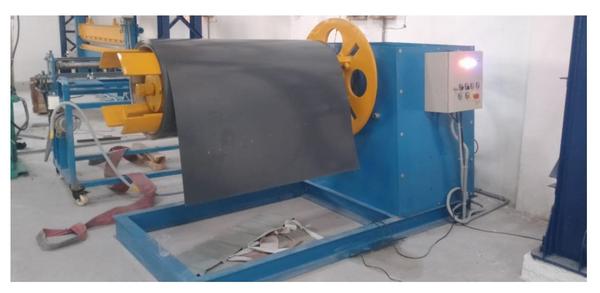

A Roofing sheet decoiler machine unwinds metal coils for roofing sheet production. It features a robust mechanism to handle heavy coils, feeding them smoothly into the roll-forming machines. With adjustable tension control and easy operation, it ensures consistent and efficient material handling, essential for producing high-quality roofing sheets in construction and manufacturing. Ideal for medium to large-scale operations, it enhances workflow and reduces manual handling. Specifications: 1) Machine Size - 5 Feet x 5 Feet x 10 Feet 2) Model - Fully Automatic / Manual 3) Electrical Load - 8 HP 4) Hydraulic System - 3 HP motor with Dowdy pump System 5) Electrical Control System - VFD Drive - PLC control 6) Mechanical Drive - 5 HP 7) Coil Handling Capacity - Max 10 TON 8) Max Coil Width - Max 1500 mm 9) Production Speed - Marge with Forming Machine 10) Machine Weight - Approx. 3 TON

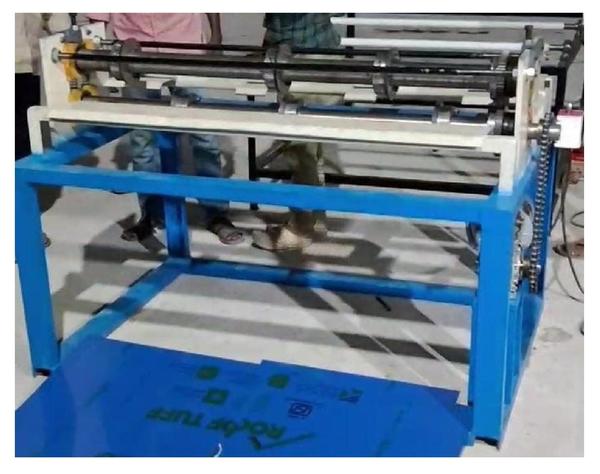

Specifications: 1) Machine Size - 1600 mm x 1000 mm x 1500 mm 2) Number of Cutters - 3 Set of cutter (6 no’s) 3) Handling sheet - 1220 mm width 0.25 to 1mm ( Roofing Sheet ) 4) Drive System - 0.5 HP motor with gearbox 5) Cutter Material - HCHCR - D3 6) Cross cutting - Manual Model Liver Type with Manual coder 7) Production Speed - 250 Feet/Min
