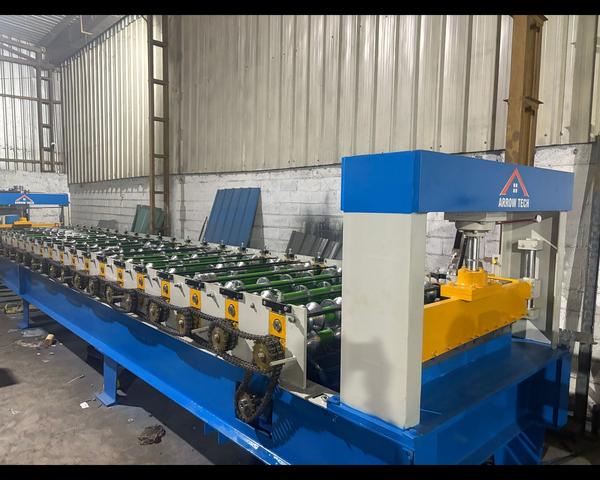

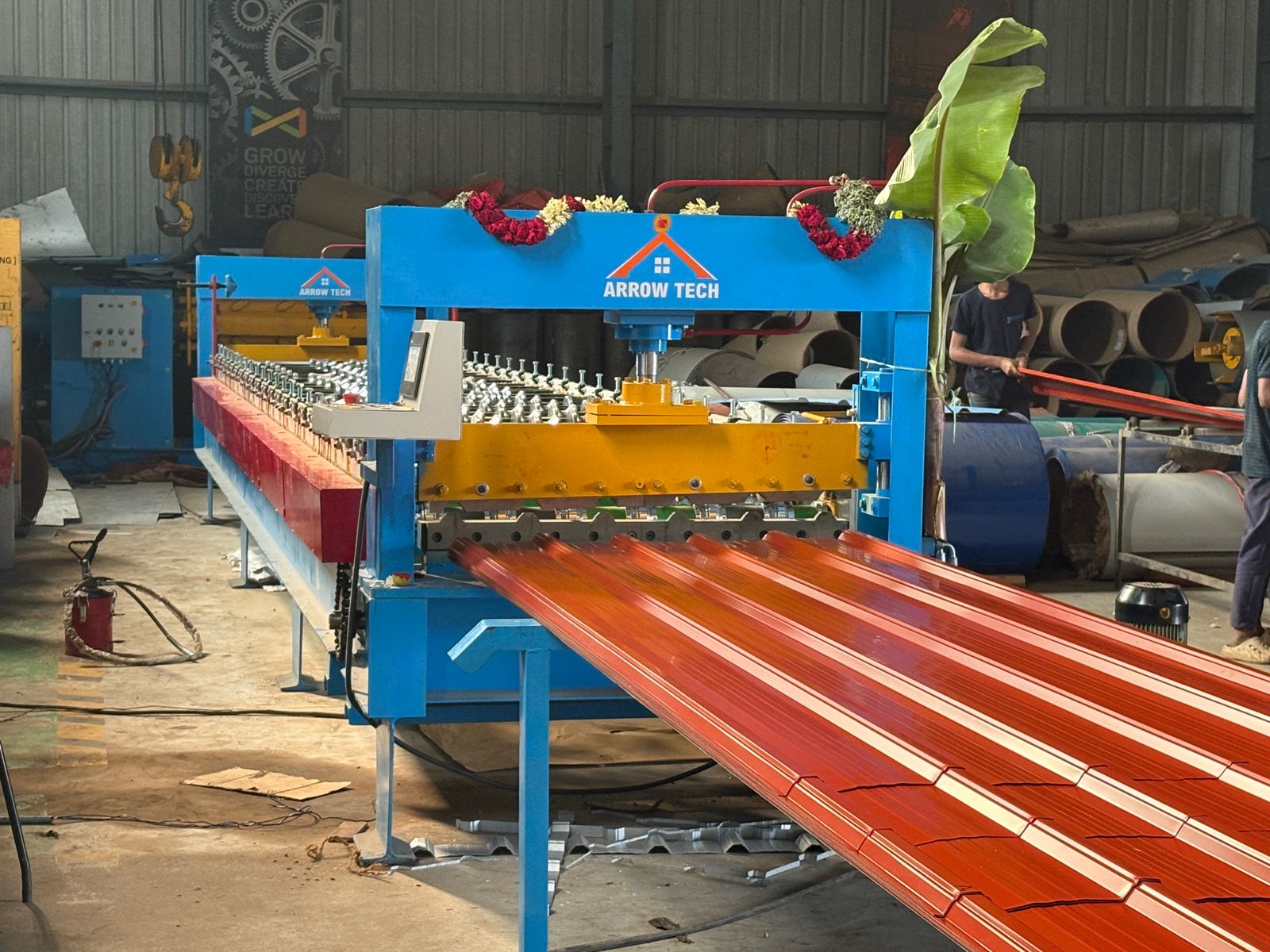

A metal roofing sheet making machine transforms metal coils into roofing sheets using roll-forming technology. It shapes and profiles the metal into various designs and thicknesses with precision and efficiency. Ideal for construction and industrial applications, the machine ensures high-quality, durable roofing sheets while accommodating different styles and sizes for diverse roofing needs.
Specifications:
1) Machine Size - 6 Feet x 6 Feet x 35 Feet
2) Material to be processed - PPGL / PPGI / BGL / GC
3) Handling sheet Width - 1220 mm
4) Sheet Thickness Range - Min 0.25 mm - Max 0.6 mm
5) Number of Forming Stages - 21 stations
6) Sheet cutting System involved - Hydraulic powered hydraulic system
7) Number of cutting point - 2 cutting points involved in forming machine
8) Number of Rollers involving - 295 Rollers involving for perfect forming
9) Mechanical Drive System - 7.5 HP powered BONFIGLIOLI gearbox
10) Driving Chain - Diamond Brand
11) hydraulic Power Source - 3 HP powered Yuken Pump System
12) Sheet cutter Made-up of HCHCR - D3 - Heat Treated with 60 HRC
13) Electrical Drive System - DELTA Drive with PLC combined
14) Machine production Speed - 60 Feet per Min - 5 TON per 4 HRS
15) Panel Interface - Touch Display - user friendly

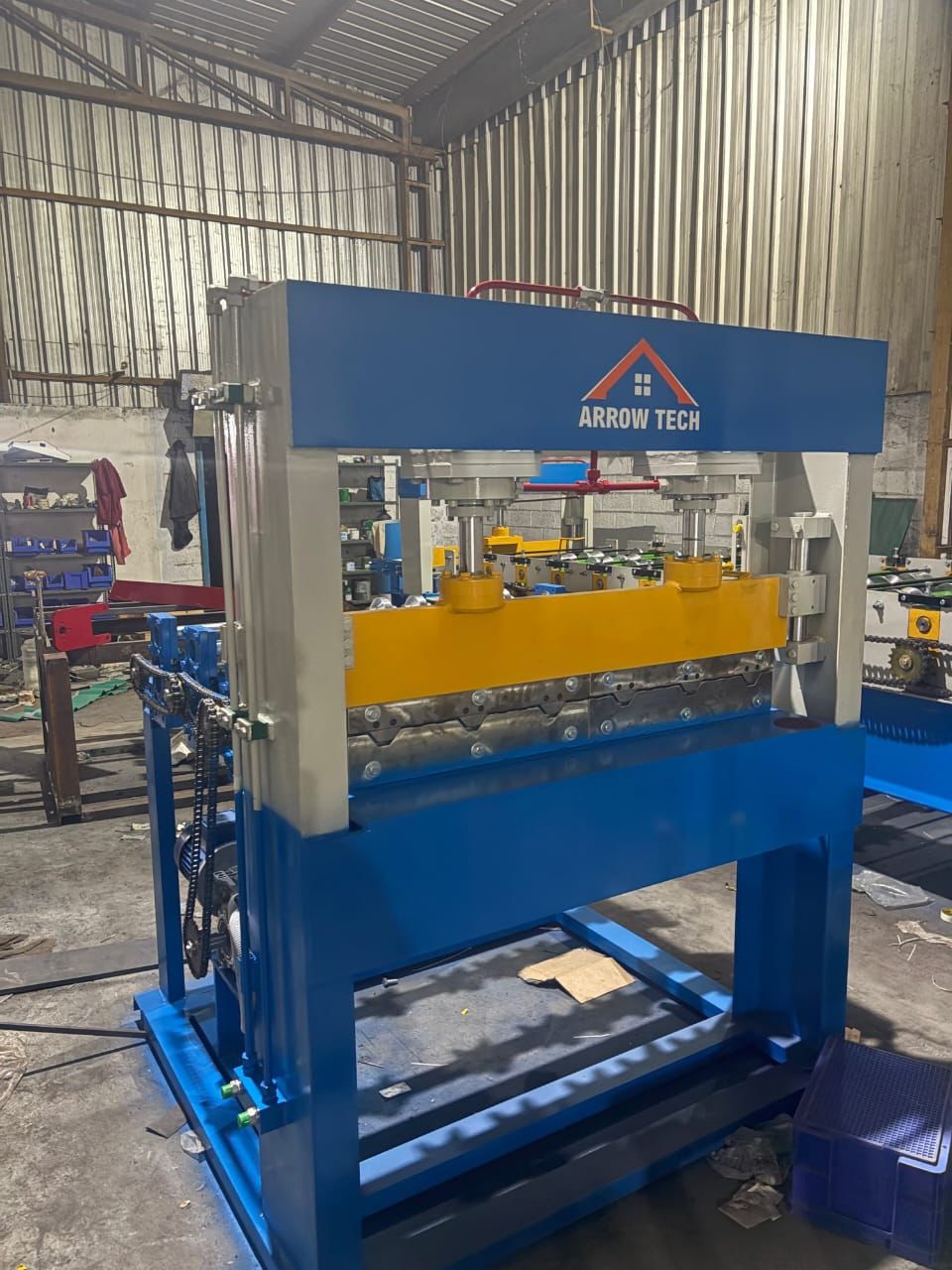

A Roofing sheet profile forming machine shapes metal coils into specific roofing profiles using roll-forming technology. It features adjustable rollers to create various designs and thicknesses with precision. Ideal for producing durable, high-quality roofing sheets, this machine ensures consistent profile formation, enhancing both functionality and aesthetic appeal in construction and roofing applications.
Specifications:
1) Machine Size - 11 Feet x 3 Feet x 8 Feet
2) Model - Semi-Automatic / Manual – 10 Feet
3) Electrical Load - 3 HP
4) Hydraulic System - 3 HP motor with Dowdy pump System
5) Electrical Control System - Logical control
6) Max Width - Max 3050 mm
7) Machine Weight - Approx. 2 TON
